Figma Document Loader

Figma is a collaborative web application for interface design. This module provides functionality to load and process content from Figma files, including text, components, and metadata.

This module provides a sophisticated Figma document loader that can:

• Load content from specific Figma files
• Extract text from selected nodes
• Process content recursively
• Handle authentication with Figma API
• Process content with text splitters
• Customize metadata extraction

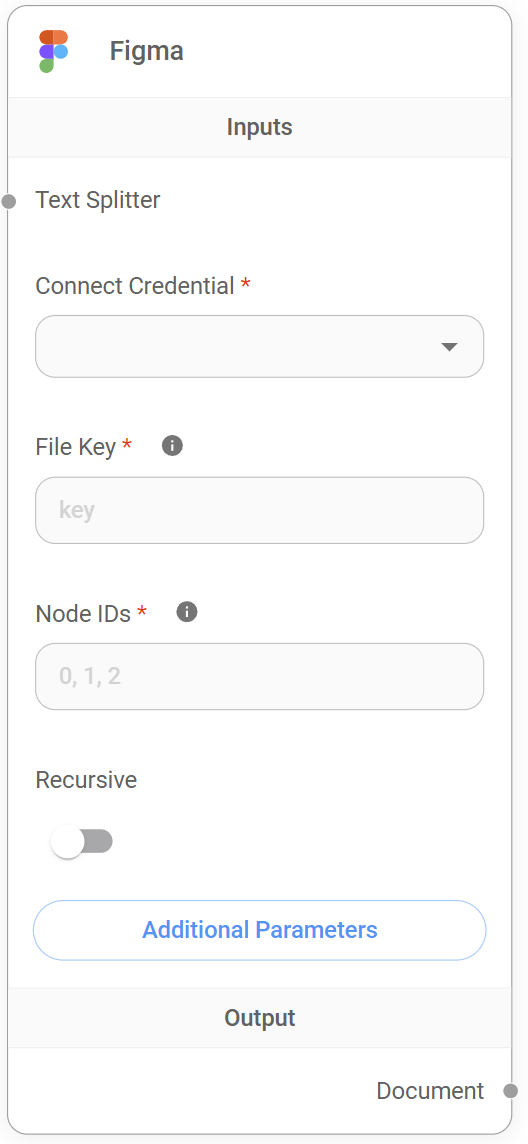

Inputs

Required Parameters

• File Key: The unique identifier for the Figma file (from file URL)
• Node IDs: Comma-separated list of node identifiers to extract
• Connect Credential: Figma API credentials (access token)

Optional Parameters

• Recursive: Whether to process nodes recursively
• Text Splitter: A text splitter to process the extracted content
• Additional Metadata: JSON object with additional metadata
• Omit Metadata Keys: Comma-separated list of metadata keys to omit

Outputs

• Document: Array of document objects containing metadata and pageContent
• Text: Concatenated string from pageContent of documents

Features

• API-based content extraction
• Node-level content selection
• Recursive processing
• Text splitting support
• Metadata customization
• Error handling
• Authentication management

File Key Format

The file key can be found in the Figma file URL:

https://www.figma.com/file/:key/:title

Example: In https://www.figma.com/file/12345/Website, the file key is 12345

Node IDs

To get Node IDs:

1. Install the Node Inspector plugin in Figma
2. Select the desired elements
3. Copy the Node IDs from the inspector
4. Use comma-separated format: “0, 1, 2”

Notes

• Requires valid Figma access token
• Node IDs must be valid for the file
• Supports recursive content extraction
• Can process multiple nodes at once
• Handles API rate limits and errors
• Preserves node hierarchy in metadata
• Supports custom metadata addition
