Open WebUI
🚀
Enhanced
Direct integration with Langfuse tracing
Open WebUI is an extensible, feature-rich, and user-friendly self-hosted AI platform designed to operate entirely offline.
Functions are like plugins for Open WebUI. We can create a custom Pipe Function that process inputs and generate responses by invoking Flowise Prediction API before returning results to the user. Through this, Flowise can be used in Open WebUI.
Setup
- First, have Open WebUI up and running, you can refer to the Quickstart guide. From the left bottom, click your profile and Admin Panel
.png)
- Open Functions tab, and add a new Function.
 (1) (1).png)
- Name the Function, and add the following code:
"""
title: Flowise Integration for OpenWebUI
Requirements:
- Flowise API URL (set via FLOWISE_API_URL)
- Flowise API Key (set via FLOWISE_API_KEY)
"""
from pydantic import BaseModel, Field
from typing import Optional, Dict, Any, List, Union, Generator, Iterator
import requests
import json
import os
class Pipe:
class Valves(BaseModel):
flowise_url: str = Field(
default=os.getenv("FLOWISE_API_URL", ""),
description="Flowise URL",
)
flowise_api_key: str = Field(
default=os.getenv("FLOWISE_API_KEY", ""),
description="Flowise API key for authentication",
)
def __init__(self):
self.type = "manifold"
self.id = "flowise_chat"
self.valves = self.Valves()
# Validate required settings
if not self.valves.flowise_url:
print(
"⚠️ Please set your Flowise URL using the FLOWISE_API_URL environment variable"
)
if not self.valves.flowise_api_key:
print(
"⚠️ Please set your Flowise API key using the FLOWISE_API_KEY environment variable"
)
def pipes(self):
if self.valves.flowise_api_key and self.valves.flowise_url:
try:
headers = {
"Authorization": f"Bearer {self.valves.flowise_api_key}",
"Content-Type": "application/json",
}
r = requests.get(
f"{self.valves.flowise_url}/api/v1/chatflows?type=AGENTFLOW",
headers=headers,
)
models = r.json()
return [
{
"id": model["id"],
"name": model["name"],
}
for model in models
]
except Exception as e:
return [
{
"id": "error",
"name": str(e),
},
]
else:
return [
{
"id": "error",
"name": "API Key not provided.",
},
]
def _process_message_content(self, message: dict) -> str:
"""Process message content, handling text for now"""
if isinstance(message.get("content"), list):
processed_content = []
for item in message["content"]:
if item["type"] == "text":
processed_content.append(item["text"])
return " ".join(processed_content)
return message.get("content", "")
def pipe(
self, body: dict, __user__: Optional[dict] = None, __metadata__: dict = None
):
try:
stream_enabled = body.get("stream", True)
session_id = (__metadata__ or {}).get("chat_id") or "owui-session"
# model can be "flowise.<id>" or just "<id>"
model_name = body.get("model", "")
dot = model_name.find(".")
model_id = model_name[dot + 1 :] if dot != -1 else model_name
messages = body.get("messages") or []
if not messages:
raise Exception("No messages found in request body")
question = self._process_message_content(messages[-1])
data = {
"question": question,
"overrideConfig": {"sessionId": session_id},
"streaming": stream_enabled,
}
headers = {
"Authorization": f"Bearer {self.valves.flowise_api_key}",
"Content-Type": "application/json",
"Accept": "text/event-stream" if stream_enabled else "application/json",
}
url = f"{self.valves.flowise_url}/api/v1/prediction/{model_id}"
with requests.post(
url, json=data, headers=headers, stream=stream_enabled, timeout=60
) as r:
r.raise_for_status()
if stream_enabled:
# Ensure correct decoding for SSE (prevents ’ etc.)
r.encoding = "utf-8"
for raw_line in r.iter_lines(decode_unicode=True):
if not raw_line:
continue
line = raw_line.strip()
# Skip keep-alives or non-data fields
if not line.startswith("data:"):
continue
payload = line[5:].strip()
if payload in ("[DONE]", '"[DONE]"'):
break
# Flowise usually sends {"event":"token","data":"..."}
try:
obj = json.loads(payload)
except json.JSONDecodeError:
# Occasionally plain text arrives—stream it anyway
if payload:
yield payload
continue
if isinstance(obj, dict):
if obj.get("event") == "token":
token = obj.get("data") or ""
if token:
yield token
else:
# Some versions send {"data":{"text":"..."}}
data_field = obj.get("data")
if isinstance(data_field, dict):
text = data_field.get("text")
if text:
yield text
return # end streaming
# Non-streaming fallback
resp = r.json()
return (
resp.get("text") or (resp.get("data") or {}).get("text", "") or ""
)
except requests.HTTPError as http_err:
try:
detail = http_err.response.text[:500]
except Exception:
detail = ""
return f"HTTP error from Flowise: {http_err.response.status_code} {detail}"
except Exception as e:
return f"Error in Flowise pipe: {e}"- After Function has been saved, enable it, and click the settings button to put in your Flowise URL and Flowise API Key:
 (1) (1).png)
 (1).png)

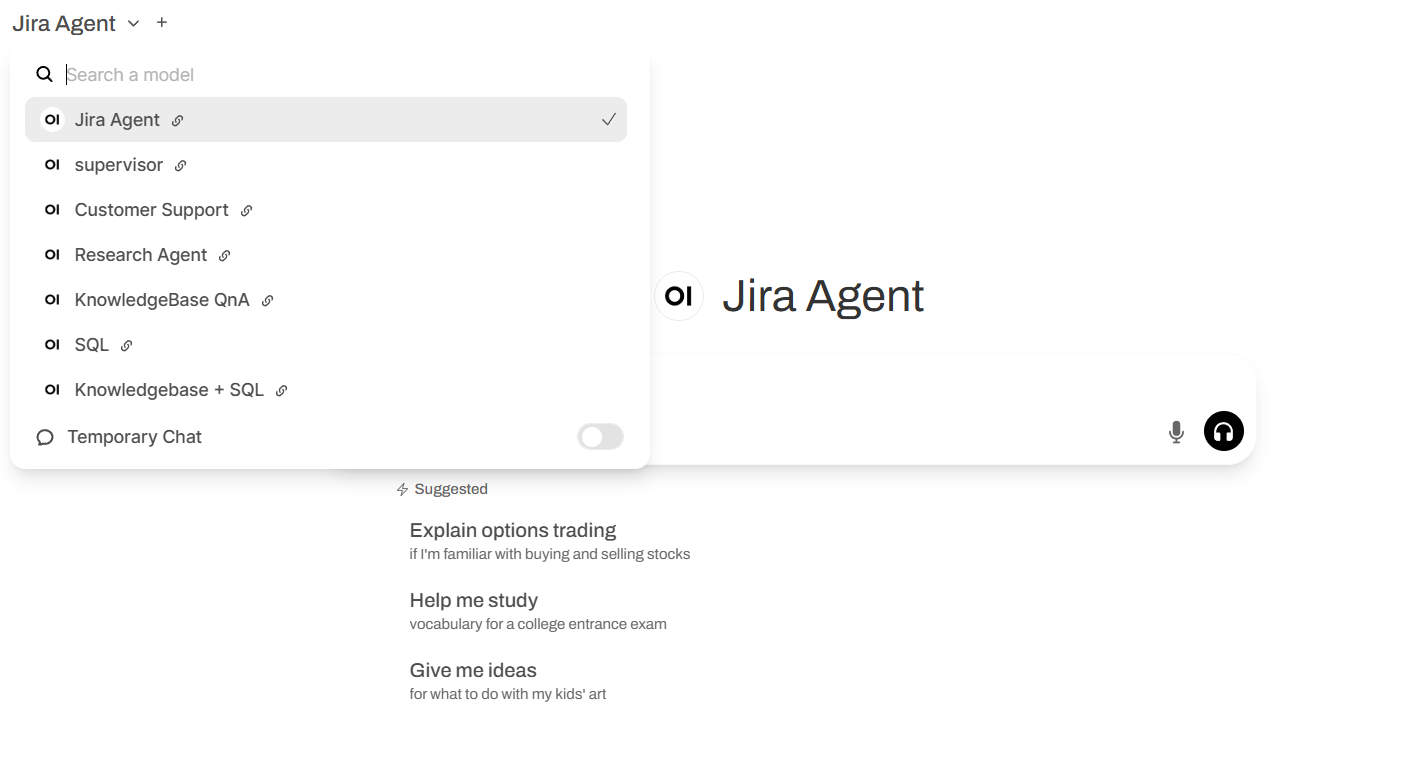

- Now when you refresh and click New Chat, you will be able to see the list of flows. You can modify the code to show:
- Only Agentflows V2:
f"{self.valves.flowise_url}/api/v1/chatflows?type=AGENTFLOW" - Only Chatflows:
f"{self.valves.flowise_url}/api/v1/chatflows?type=CHATFLOW" - Only Assistants:
f"{self.valves.flowise_url}/api/v1/chatflows?type=ASSISTANT"
 (1).png)

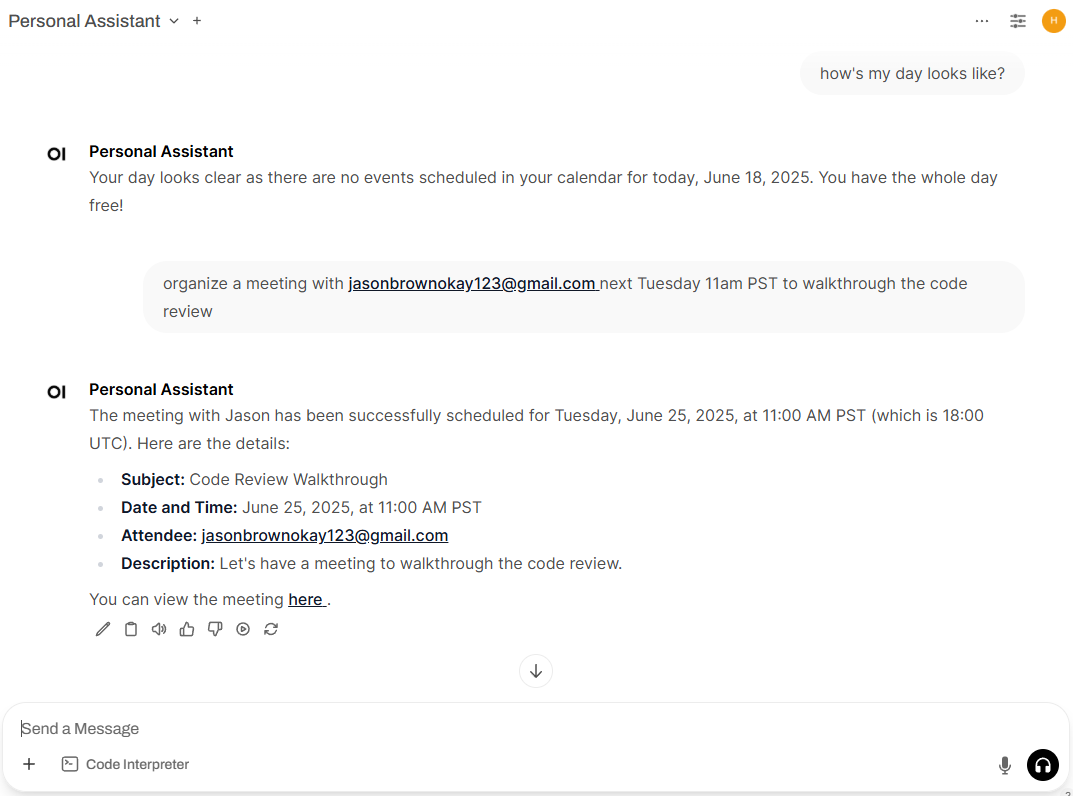

- Test:
.png)
